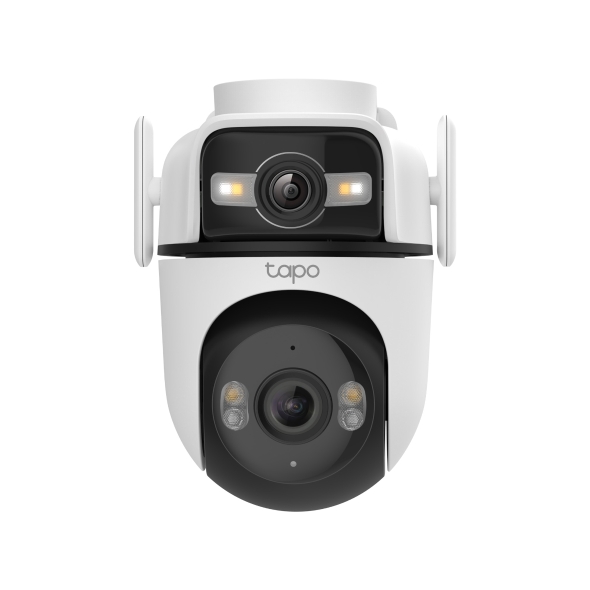

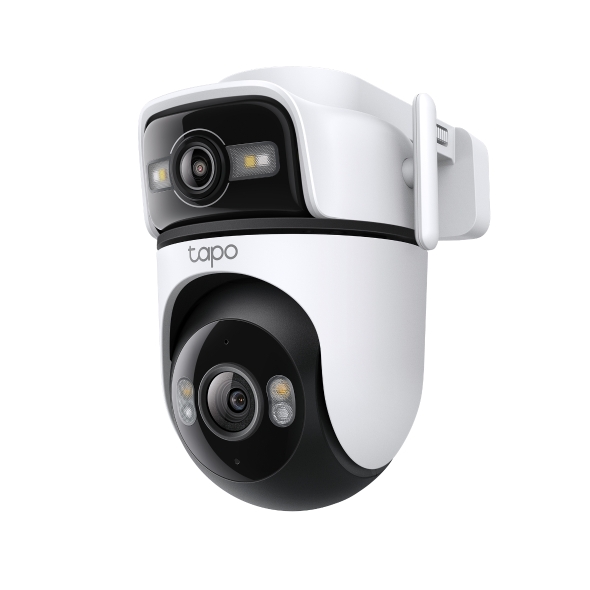

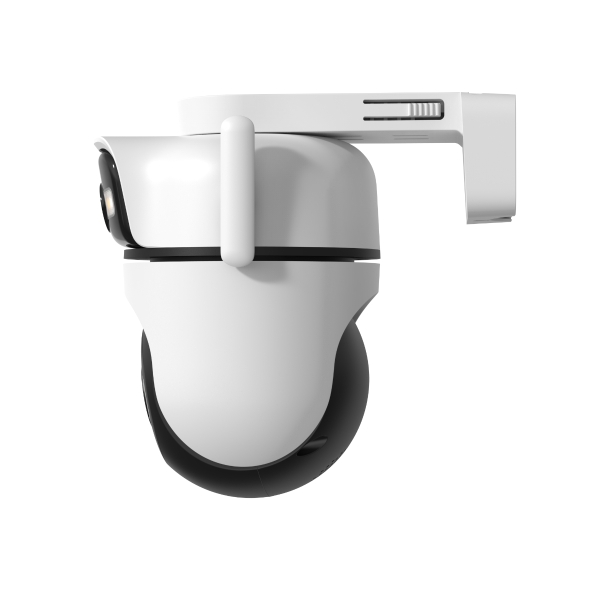

Tapo C545D Dual-Lens Outdoor Security Camera

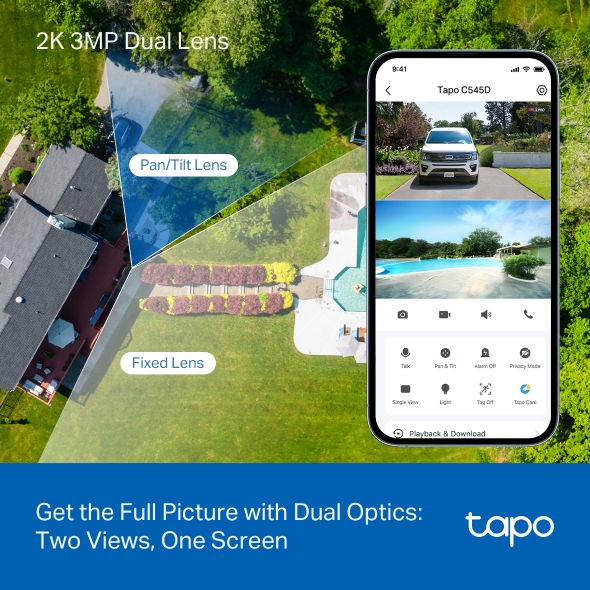

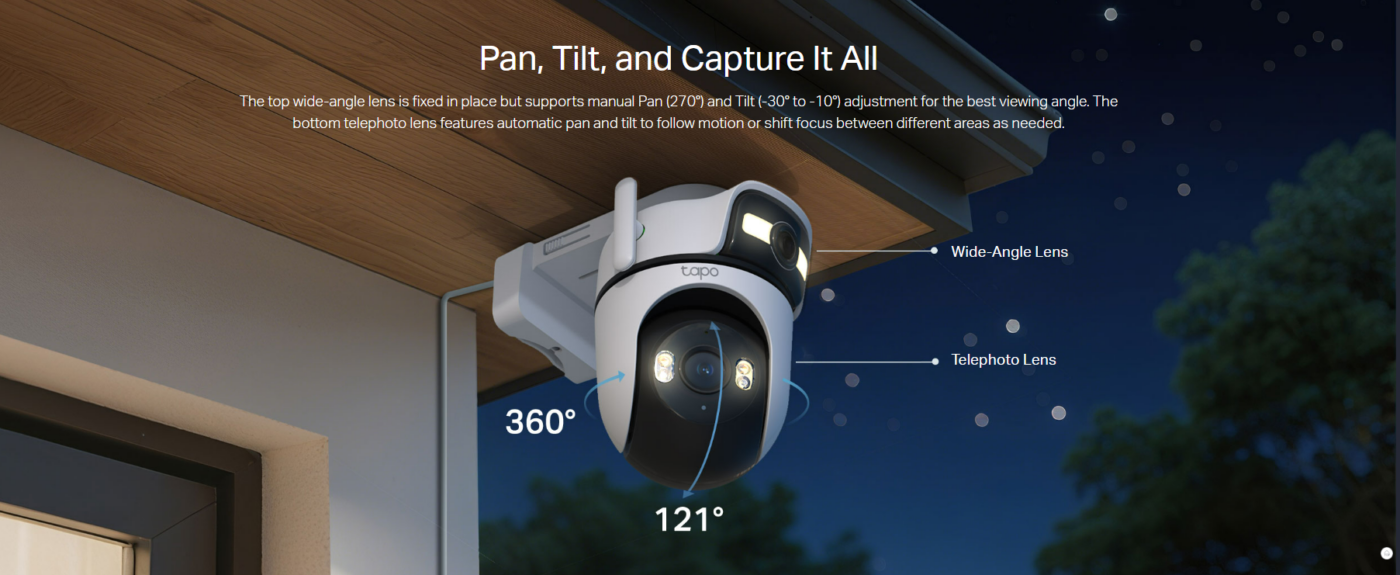

Dual-Lens Design for Comprehensive Coverage

The Tapo C545D features two 2K-resolution camera lenses — a wide-angle lens and a telephoto lens — that work together to monitor more of your property from a single device. The wide view captures broad areas, while the telephoto lens focuses on distant details with enhanced clarity.

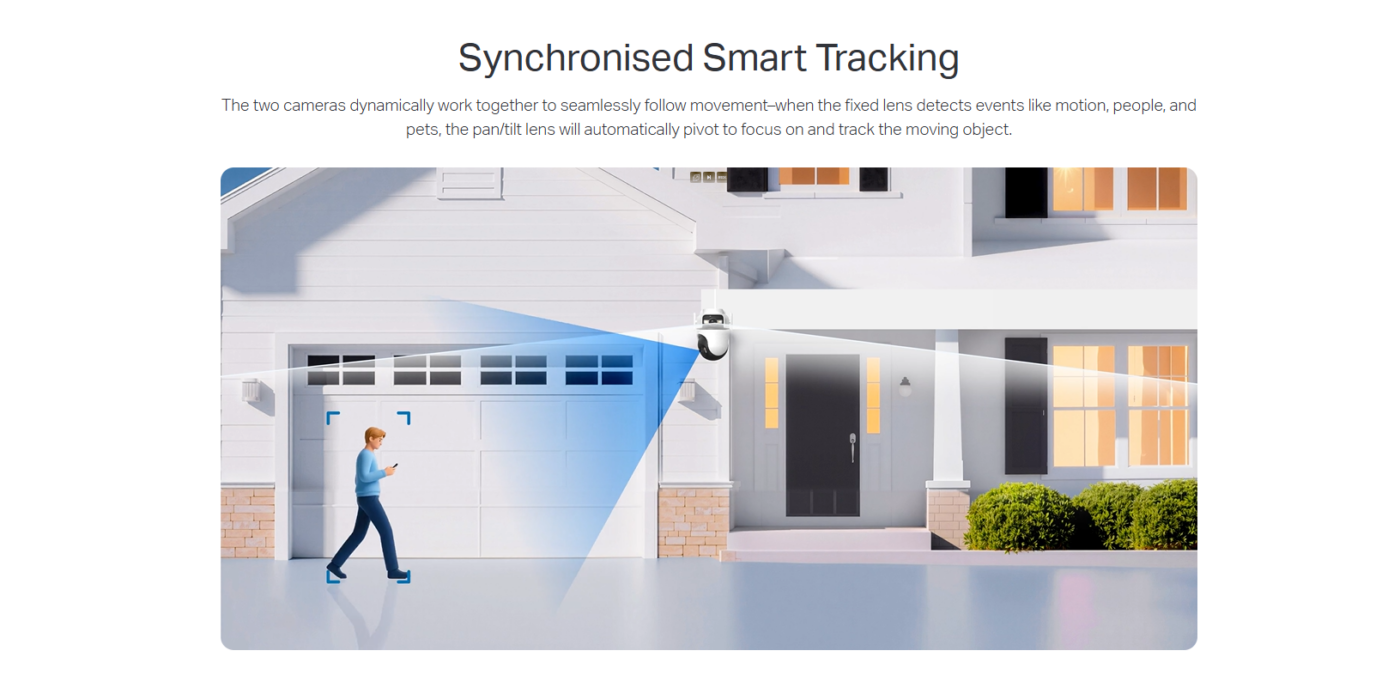

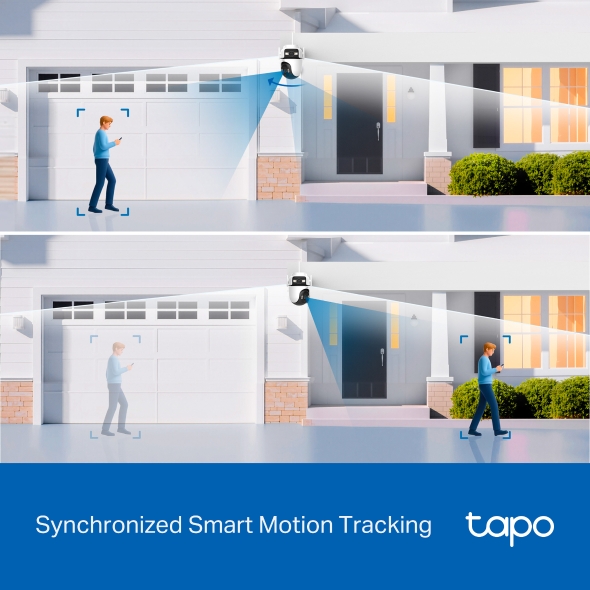

Smart Tracking & One-Tap Focus

When motion is detected by the wide-angle lens, the telephoto lens automatically pans and tilts to follow the subject, providing dynamic tracking that keeps moving targets in view. With the One-Tap Smart Focus feature, you can instantly zoom into a specific area in the live view for closer inspection.

2K Resolution with Hybrid Night Vision

Both lenses record at 2K 3 MP resolution (2304 × 1296) for crisp video footage. The camera supports smart night vision modes, including full-color with spotlights, infrared black-and-white, and an automatic mode that adjusts based on lighting.

AI Detection & Custom Alerts

AI-powered detection identifies people, pets, and vehicles and can even notify you when a line is crossed or tampering is detected. Custom activity zones help focus monitoring on important areas and reduce unwanted alerts.

Two-Way Audio & Network Convenience

Built-in microphone and speaker enable two-way audio, letting you listen and speak through the camera from anywhere using the Tapo app. The camera supports both Wi-Fi and Ethernet connectivity — ideal for areas with weak wireless signals.

Durable Outdoor Performance

With an IP66 weather-resistant rating, the C545D is built to withstand rain, snow, dust, and heat, making it suitable for outdoor environments year-round.

---

Technical Specifications

• Brand: Tapo

• Model: C545D

• Sensor: 1/2.8“ Progressive Scan CMOS

• Dual Lens: 2K Dual 3 MP (2304 × 1296)

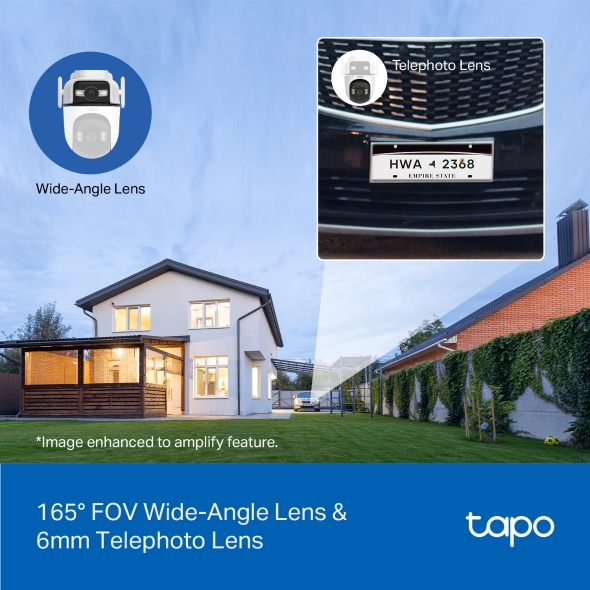

• Wide Lens FOV: 165.1° diagonal (wide-angle)

• Telephoto Lens: 6 mm with up to 10.8× digital zoom

• Frame Rate: 15 fps

• Video Compression: H.264

• Night Vision: Hybrid IR/white light up to ~29.9 m & color night vision

• Audio: Two-way audio with noise cancellation

• AI Detection: People, pet, vehicle, motion, line crossing, tampering

• Storage: microSD up to 512 GB (local) / Tapo Care cloud (subscription)

• Connectivity: Wi-Fi 2.4 GHz & Ethernet RJ-45

• Smart Integration: Amazon Alexa, Google Assistant, SmartThings

• Weather Resistance: IP66

• Power: 12 V DC Power Adapter

• Operating Temps: −30 °C to 60 °C

---

What’s Inside the Box

•  Tapo C545D Dual-Lens Security Camera

•  Mounting Bracket

•  Template Sticker

•  Mounting Screws

•  Anchors

•  Waterproof Seal

• Waterproof Cable Attachments

•  Power Adapter

• Quick Start Guide

---

Real-Life Benefits

• Wide-Area & Detail-Focused Monitoring: Dual lenses reduce blind spots and provide both broad and close-up coverage.

• Dynamic Smart Tracking: Automatically follows people, pets, or vehicles detected in view.

• Clear Day & Night Vision: Choose from full-color night vision or standard infrared based on lighting conditions.

• Secure Outdoor Design: With IP66 weatherproofing, it handles extreme outdoor conditions.

• Flexible Connectivity: Ethernet support ensures more stable streaming in Wi-Fi-challenged areas.

• Smart Notifications: Custom alerts keep you informed only when it matters.

---

Key Features

• Dual 2K 3 MP lenses (wide & telephoto)

• AI-based person, pet, and vehicle detection

• Color and infrared night vision options

• Two-way audio communication

• Custom activity & privacy zones

• Ethernet + Wi-Fi connectivity

• IP66 weather resistance
