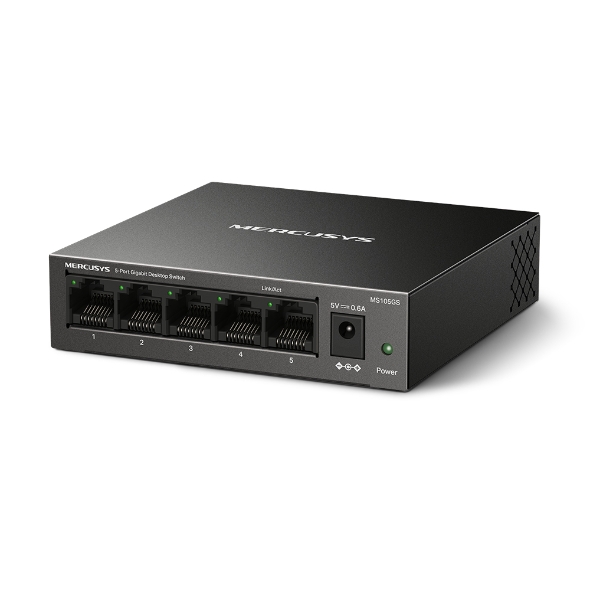

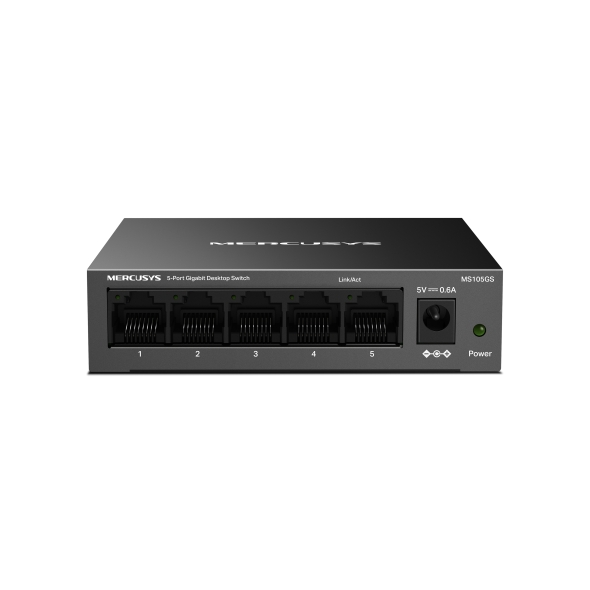

Mercusys MS105GS a 5-port Gigabit Ethernet switch

The Mercusys MS105GS is a 5-port Gigabit Ethernet switch designed to provide high-speed, reliable network connectivity for small offices, home networks, and SOHO environments. Its compact and sturdy design ensures durability while maintaining a sleek appearance that fits seamlessly into any workspace.

Equipped with 5 Gigabit RJ-45 ports, the MS105GS delivers blazing-fast speeds up to 10/100/1000 Mbps, perfect for HD video streaming, online gaming, large file transfers, VoIP calls, and other bandwidth-intensive applications. Each port supports auto-negotiation and auto MDI/MDIX, allowing you to connect devices directly without the need for crossover cables.

The MS105GS is plug-and-play, requiring no software installation or configuration, making it ideal for users who want a hassle-free networking solution. Its fanless design guarantees silent operation, ensuring it won’t disrupt work or entertainment environments. The LED indicators on each port clearly show link and activity status, providing real-time network monitoring at a glance.

With energy-efficient technology, the MS105GS reduces power consumption based on cable length and device activity, making it eco-friendly and cost-effective. Its non-blocking architecture ensures that all ports can operate at full speed simultaneously, delivering uninterrupted performance for multiple devices.

Whether you are expanding a home network, connecting multiple computers in an office, or linking gaming consoles and smart devices, the Mercusys MS105GS provides stable, fast, and reliable wired connectivity without any configuration headaches.

Technical Specifications:

• Model: MS105GS

• Ports: 5 x Gigabit RJ-45 ports

• Data Transfer Speed: 10/100/1000 Mbps

• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Switching Capacity: 10 Gbps

• Forwarding Rate: 7.44 Mpps

• MAC Address Table: 2K entries

• Packet Buffer Memory: 1 Mb

• LED Indicators: Power, Link/Activity per port

• Auto-Negotiation: Yes

• Auto MDI/MDIX: Yes

• Power Supply: 5V/0.6A

• Power Consumption: ≤ 3.6W

• Operating Temperature: 0°C to 40°C

• Dimensions: 131 x 80 x 26 mm

• Weight: 0.2 kg

Mercusys

Inside the Box:

• Mercusys MS105GS 5-Port Gigabit Switch

• Power Adapter (5V/0.6A)

• Quick Installation Guide

ISERVICE

Real-Life Benefits:

• Expand your home or office network with high-speed wired connections.

• Plug-and-play setup—no configuration required.

• Silent operation due to fanless design.

• Energy-efficient technology saves electricity.

• Reliable connectivity for gaming, streaming, VoIP, and file sharing.
