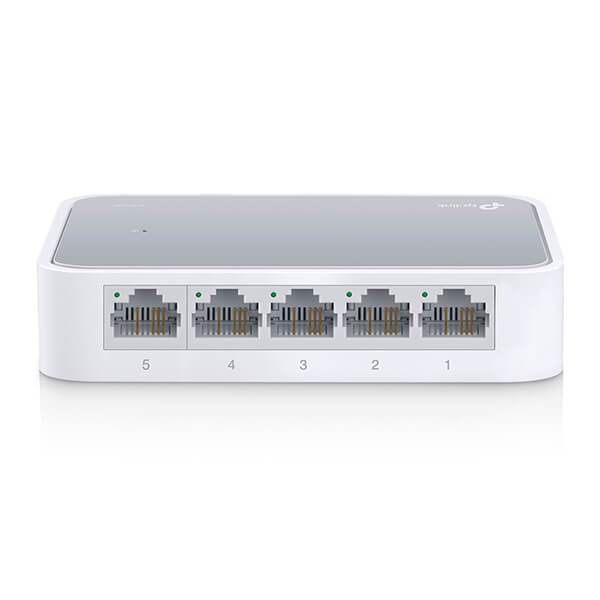

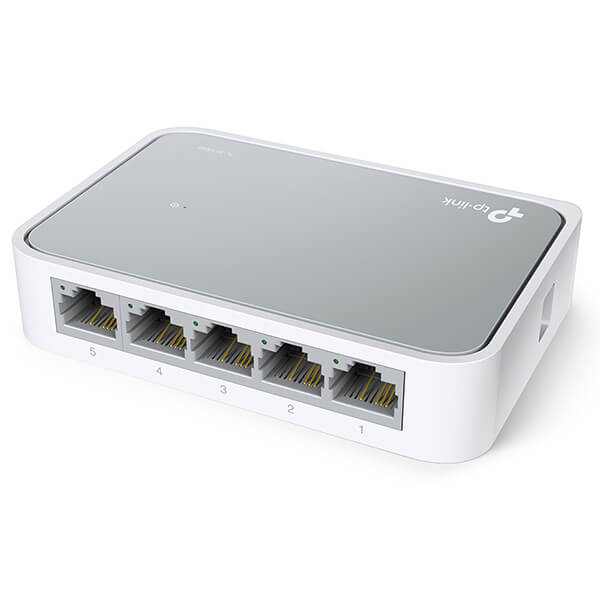

TL-SF1005D 5-port 10/100 Mbps Fast Ethernet switch

The TL-SF1005D is a 5-port 10/100 Mbps Fast Ethernet switch designed to expand and optimize small networks in homes, offices, or small businesses. Its plug-and-play design allows you to quickly connect multiple devices without complex configurations, making it ideal for users seeking an efficient and affordable networking solution.

Each of the 5 RJ-45 ports supports 10/100 Mbps auto-negotiation, which ensures compatibility with a wide range of network devices, including computers, printers, IP cameras, and other Ethernet-enabled devices. The switch also features auto MDI/MDIX, eliminating the need for crossover cables and simplifying network setup.

The TL-SF1005D is built for reliability and silent operation. Its fanless design ensures zero noise, making it perfect for quiet environments like bedrooms, home offices, or study rooms. LED indicators on each port display real-time link and activity status, giving users a clear view of network performance at a glance.

Equipped with energy-efficient technology, the TL-SF1005D automatically adjusts power consumption based on cable length and network activity, reducing electricity use and contributing to an eco-friendly setup. Its non-blocking architecture ensures that all ports operate at maximum speed simultaneously, supporting seamless streaming, gaming, VoIP calls, and file transfers.

Whether for home use, remote work, or small office setups, the TL-SF1005D offers stable, high-speed connections for multiple devices, helping you stay productive and connected without interruptions.

Technical Specifications:

• Model: TL-SF1005D

• Ports: 5 x Fast Ethernet RJ-45 ports

• Data Transfer Speed: 10/100 Mbps

• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

• Switching Capacity: 1 Gbps

• MAC Address Table: 1K entries

• Packet Forwarding Rate: 0.744 Mpps

• LED Indicators: Power, Link/Activity per port

• Auto-Negotiation: Yes

• Auto MDI/MDIX: Yes

• Power Supply: 5V/0.6A

• Power Consumption: ≤ 2.5W

• Operating Temperature: 0°C to 40°C

• Dimensions: 118 x 70 x 25 mm

• Weight: 0.17 kg

TP-LINK

Inside the Box:

• TL-SF1005D 5-Port Fast Ethernet Switch

• Power Adapter (5V/0.6A)

• Quick Installation Guide

ISERVICE

Real-Life Benefits:

• Quickly expand your home or small office network with multiple devices.

• Plug-and-play simplicity—no configuration required.

• Silent fanless design suitable for quiet spaces.

• Energy-saving technology reduces power consumption.

• Reliable, stable connections for streaming, gaming, and file transfers.
