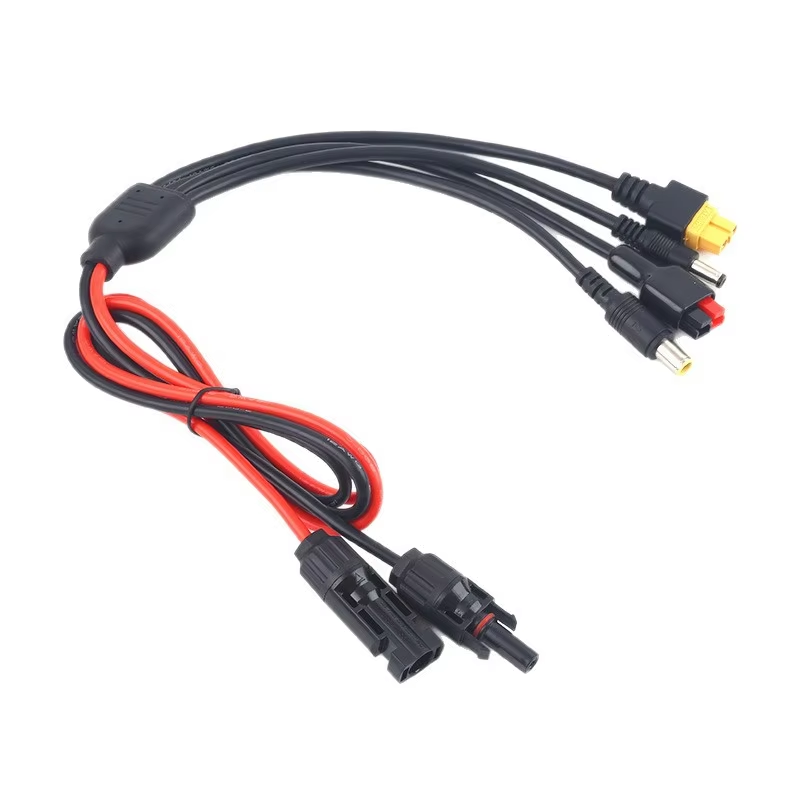

MC4 to XT60 Female 30A Solar Panel Extension Cable – Reliable PV Power Connection

The MC4 to XT60 Female 30A DC5521 / DC7909 Solar Panel Connector Extension Cable is designed to connect photovoltaic solar panels to portable power stations, battery packs, solar generators, and other charging equipment. It acts as a versatile adapter cable that bridges MC4 solar connectors with multiple DC power connectors, ensuring compatibility across different solar power systems.

This cable features 12AWG pure copper conductors, which provide efficient power transmission with minimal voltage loss and improved durability. The thicker gauge wire is capable of handling higher currents safely, making it suitable for solar charging systems and portable energy storage devices.

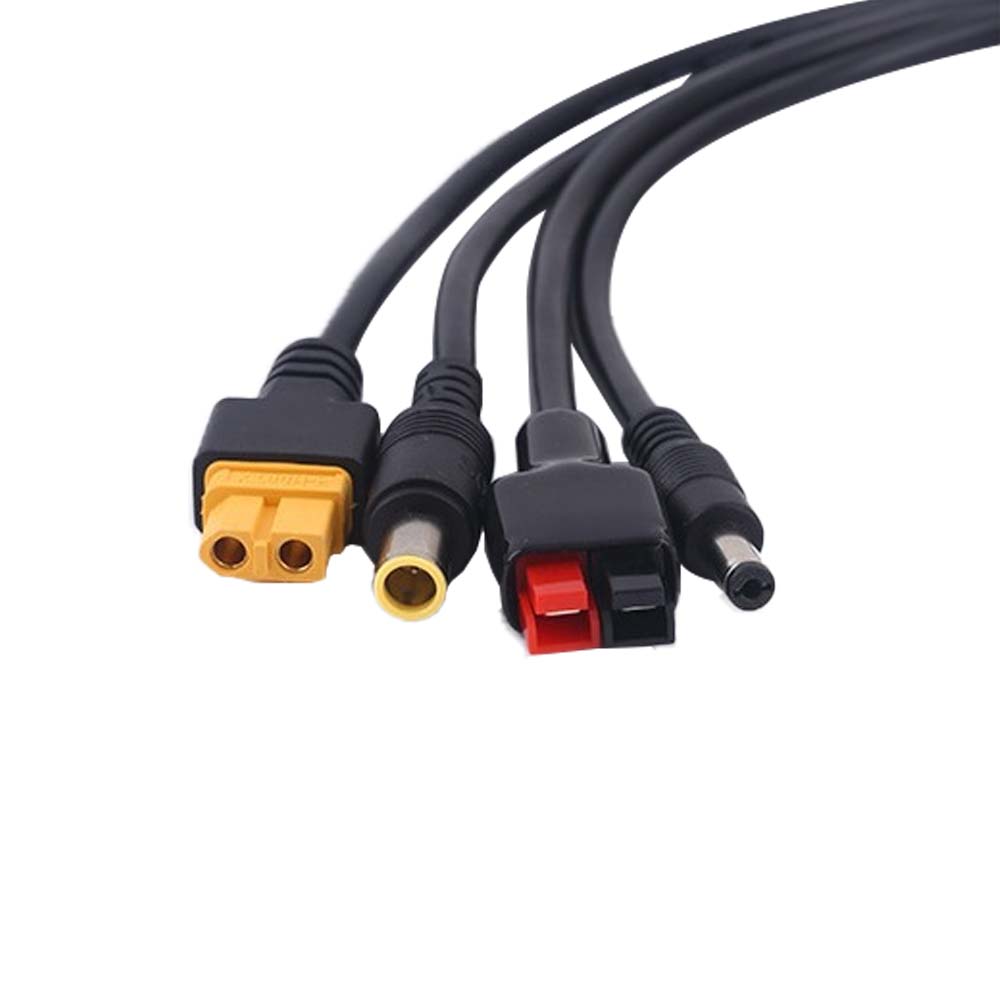

The cable supports multiple connection standards including XT60 female, DC5521, and DC7909 connectors, allowing one solar panel to be compatible with a wide range of power stations, MPPT controllers, and solar generators. These connectors are commonly used in portable solar systems and battery charging applications.

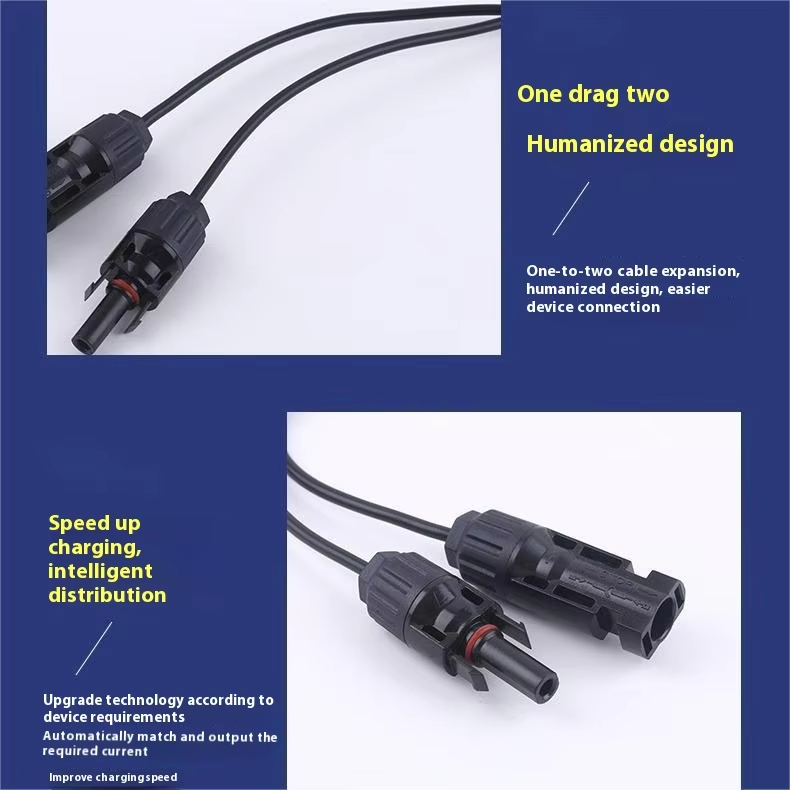

The MC4 connectors on the solar panel side are designed specifically for photovoltaic installations. These connectors feature a secure locking mechanism that prevents accidental disconnection and are built with weather-resistant materials to withstand outdoor environments such as sunlight, moisture, and temperature fluctuations.

---

Key Features

☀ Multi-Connector Solar Adapter
Supports XT60 Female, DC5521, and DC7909 connectors for wide device compatibility.

🔌 MC4 Solar Connectors
Standard photovoltaic connectors used on most solar panels.

⚡ 30A Current Rating
Handles higher current loads for efficient solar charging.

🧵 12AWG Pure Copper Wire
Low resistance cable reduces energy loss and improves efficiency.

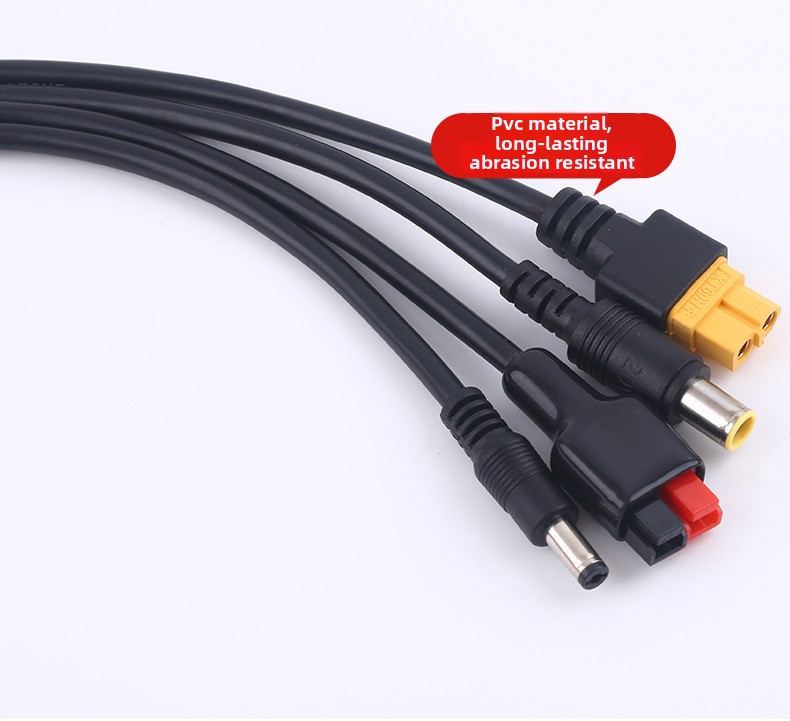

🛡 Durable PVC Insulation
Resistant to UV exposure, moisture, and outdoor conditions.

📏 1 Meter Extension Length
Provides convenient connection distance between solar panels and devices.

🔒 Secure Locking MC4 Design
Prevents accidental disconnection during operation.

---

Real-Life Benefits

Connect solar panels directly to portable power stations
Compatible with many solar generators and battery systems
Reliable outdoor use thanks to weather-resistant materials
Efficient power transfer with thick copper conductors
Flexible cable makes solar setups easier to install
Perfect for camping, RVs, off-grid power, and emergency backup

---

Technical Specifications

Product Name: MC4 to XT60 Female Solar Panel Extension Cable

Connector Types:
MC4 (Solar Panel Side)
XT60 Female
DC5521
DC7909

Cable Gauge: 12AWG

Cable Length: 1 meter

Maximum Current: 30A

Conductor Material: Pure Copper

Insulation Material: PVC

Operating Temperature: −40°C to 85°C

Application: Solar panel to portable power station / battery / MPPT controller

Compatibility:
Solar panels with MC4 connectors
Portable power stations with XT60 / DC5521 / DC7909 inputs

---

What’s Inside the Box

1 × MC4 to XT60 / DC5521 / DC7909 Solar Panel Adapter Cable (1m)
